MLB660-50-24(16x50)45DEG-PWL

Order number: 70122220

Product description:
Line laser, 45°, red, 660nm, 50mW, 24V DC, 16x50 mm, thermal shutdown @50°C, adjustable focus, 5V TTL Modulation, 130mW laser diode

• Operating Voltage 24 V DC
• Laser Class 3B
• adjustable focus
• high power

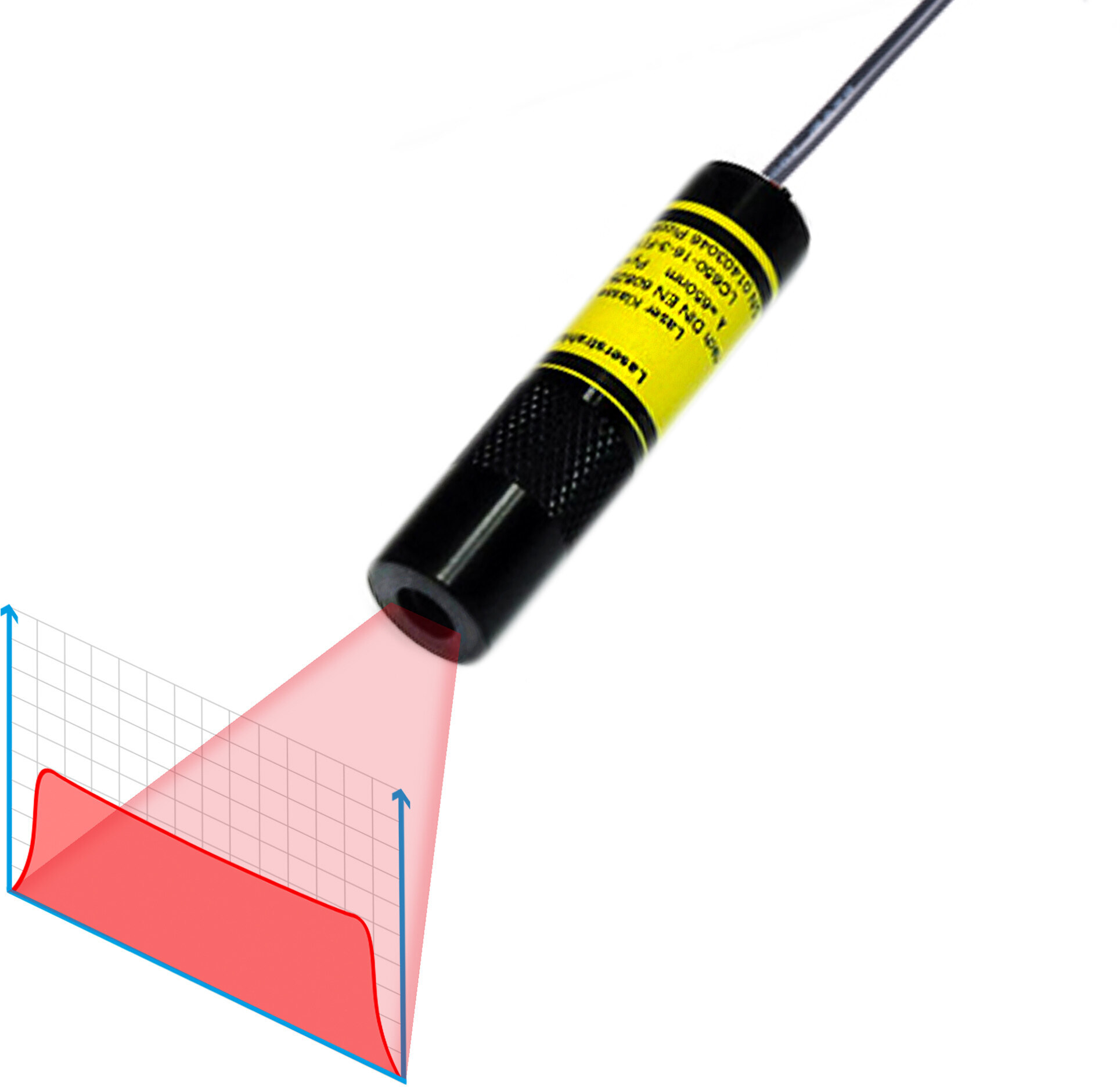

MLB660-50-24(16x50)45DEG-PWL - Hauptbild
MLB660-50-24(16x50)45DEG-PWL - Produktbild 1
MLB660-50-24(16x50)45DEG-PWL - Rendergrafik
Warnlabel 3B
663,78
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 660nm
    (rot)
    Optical Power 50mW
    Laser Class 3B
    Divergence 0.3mrad
    Fan Angle 45°
    Line Thickness 0.2mm@100mm
    Optics Powell Lens
    Laser technology Single Mode Diode
    Protection Lens Ja
    Axial Divergence ±0.2°
    Size Ø16mm 50mm
    Material aluminium
    Cable length 450mm
    Wire type Belden 9533
    Focus adjustable
    Output Aperture 6.8mm
    Potential of Housing insulated
    Max. Mod. Frequency 50kHz
    Lifetime >10000h
    Operating Voltage 23.3 - 24.6, typ 24V DC
    Operating Current 50 - 200, typ 100mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 70g
    Stripping of wire 5mm
    Stripping of cable cover 50mm
  • Illustration and technical drawing
  • MLB660-50-24(16x50)45DEG-PWL - Hauptbild
    MLB660-50-24(16x50)45DEG-PWL - Produktbild 1
    MLB660-50-24(16x50)45DEG-PWL - Rendergrafik
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred24V DC
    Modulation:Cable color Modulate: yellowyellow50kHz
  • Matching accessories
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Order no.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    61.26 EUR
