DI650-50(8x21)-No-Driver
Order number: 70120714
Product description:
Dot lasermodule, red, 650nm, 50mW, 8x21mm, class 3B, without driver, operating voltage depeneds on used laser diode
• Operating Voltage
• image processing
• Laser Class 3B
• fixed focus
• glas lenses anti reflex coated
Product description:
Dot lasermodule, red, 650nm, 50mW, 8x21mm, class 3B, without driver, operating voltage depeneds on used laser diode
• Operating Voltage
• image processing
• Laser Class 3B
• fixed focus
• glas lenses anti reflex coated

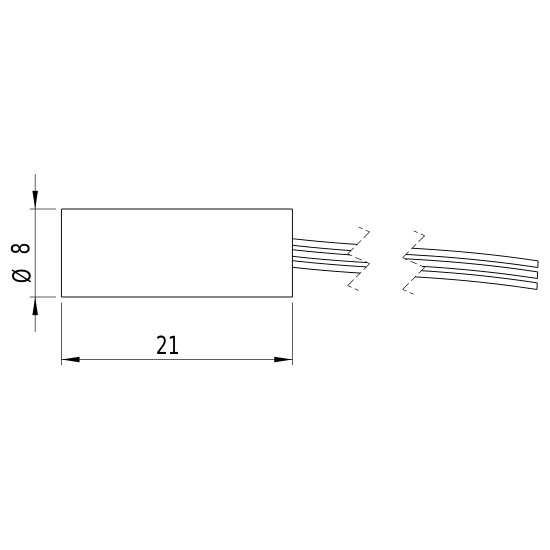

-F700-AP.png "DI650-50(8x21)-No-Driver - Zeichnung")

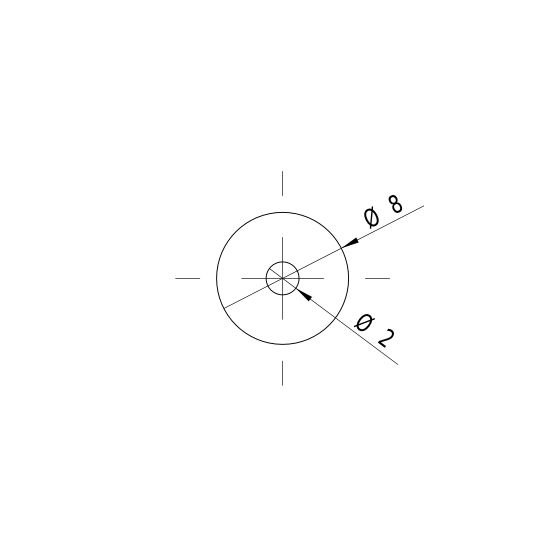

-F700-AP.png "DI650-50(8x21)-No-Driver - Zeichnung Front")

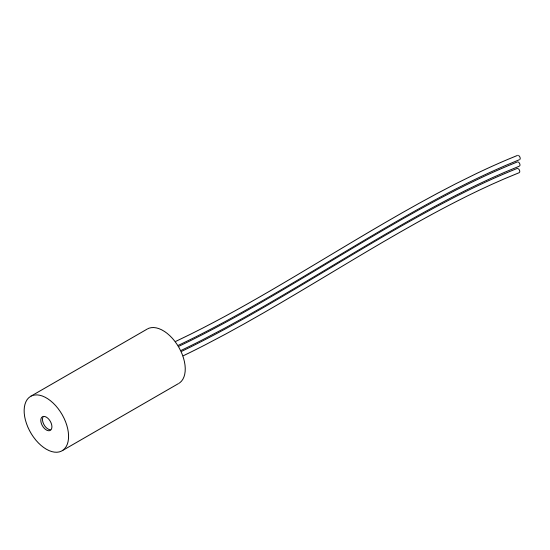

-F700-AP.png "DI650-50(8x21)-No-Driver - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 50mW Laser Class 3B Divergence 1.5mrad Size of Laserdot <3..4mm@5m Operating Distance 100m Optics Glass lens AR coated Laser technology Single Mode Diode Size Material aluminium Focus collimated Output Aperture 2.5mm Lifetime >10000h Operating Voltage 2.2 - 2.6V DC Operating Current 40 - 100, typ 70mA Housing Color silver Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 3.1g - Illustration and technical drawing
- Matching accessories
LABEL-DIN-CLASS3B-DE
Order no.: 70114232
Safety Label german DIN EN 60825, Class 3B, 38x23mm, yellow, PET
0.60 EUR- Downloads
