MLH650-16-5(10x30)-F100

Order number: 70116847

Product description:
modulated isolated Line lasermodule, red, 90°, 650nm, 16mW, 5V DC, 10x30mm, class 2, 200kHz, with external pcb, external cooling system required

• High Power
• compact size
• Laser Class 2
• Operating Voltage 5 V DC
• fixed focus
MLH650-16-5(10x30)-F100 - Hauptbild
MLH650-16-5(10x30)-F100 - Rendergrafik

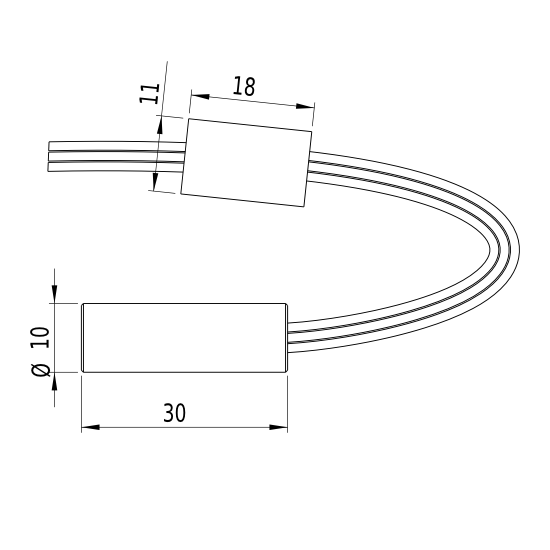

MLH650-16-5(10x30)-F100 - Zeichnung

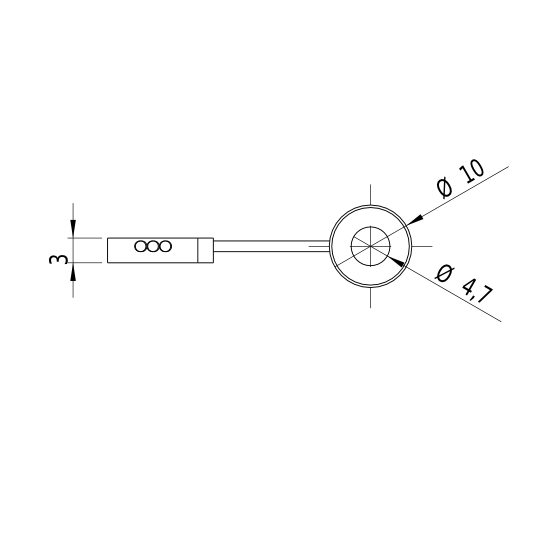

MLH650-16-5(10x30)-F100 - Zeichnung Front

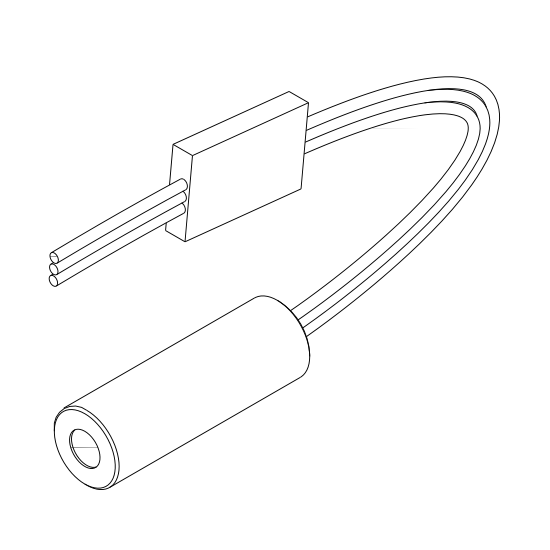

MLH650-16-5(10x30)-F100 - Zeichnung isometrisch
Warnlabel 2
201,60
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 650nm
    (rot)
    Optical Power 16mW
    Laser Class 2
    Divergence 1mrad
    Fan Angle 90°
    Line Thickness <0.3mm@0.1m
    Operating Distance 0.1m
    Optics Glass lens AR coated
    Laser technology diode
    Size Ø10mm 30mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (100mm)
    Output Aperture 4.5mm
    Potential of Housing insulated
    Max. Mod. Frequency 200kHz
    Lifetime >5000h
    Operating Voltage 5V DC
    Operating Current 30 - 90, typ 60mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 18g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    PCB Ja
    PCB size 7.5x14x10mm
  • Illustration and technical drawing
  • MLH650-16-5(10x30)-F100 - Hauptbild
    MLH650-16-5(10x30)-F100 - Rendergrafik
    MLH650-16-5(10x30)-F100 - Zeichnung
    MLH650-16-5(10x30)-F100 - Zeichnung Front
    MLH650-16-5(10x30)-F100 - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
    Modulation:Cable color Modulate: yellowyellow200kHz
  • Matching accessories
  • MAGNETIC-MOUNT-PRO-10(48X86)MAGNETIC-MOUNT-PRO-10(48X86)
    Order no.: 70160970
    MAGNETIC-MOUNT-PRO for Lasermodul 10mm, Diameter 48mm, Height 86mm,
    89.83 EUR
