LFD780-1-3(8x23)

Order number: 70103892

Product description:
Dot lasermodule, infrared, 780nm, 1mW, 3V DC, 8x23mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• fixed focus
• compact size
• low cost

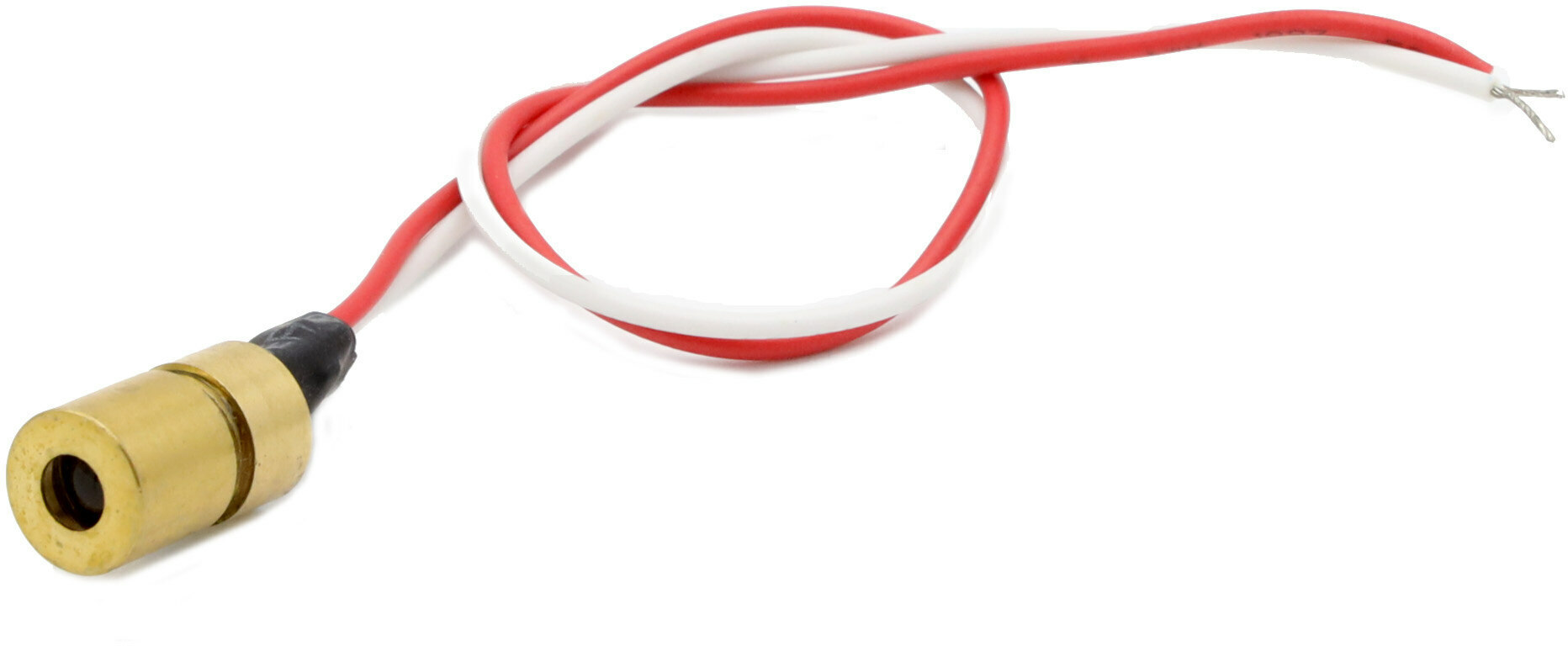

LFD780-1-3(8x23) - Hauptbild

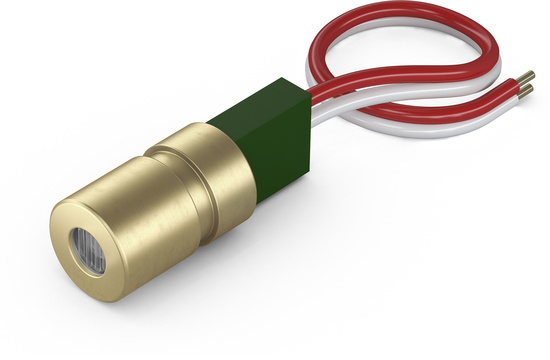

LFD780-1-3(8x23) - Rendergrafik
LFD780-1-3(8x23) - Zeichnung

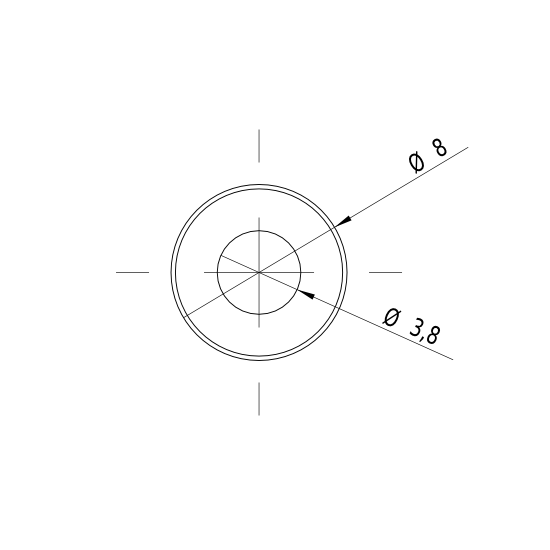

LFD780-1-3(8x23) - Zeichnung Front

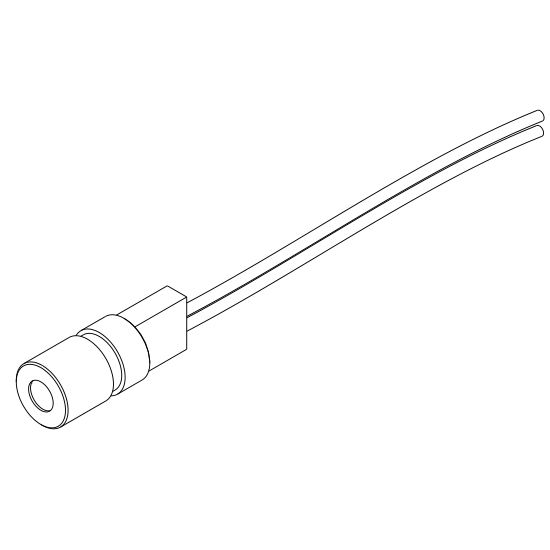

LFD780-1-3(8x23) - Zeichnung isometrisch
Warnlabel 3R
20,08
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength780nm
    (infrarot)
    Optical Power1mW
    Laser Class3R
    Divergence0.8mrad
    Size of Laserdot<4..6mm@5m
    Operating Distance10m
    Opticsacryl lense
    Laser technologydiode
    Size
    MaterialBronze
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focuscollimated
    Output Aperture3.8mm
    Potential of HousingVDD(+)
    Lifetime>3000h
    Operating Voltage2.3 - 3.3, typ 3V DC
    Operating Current10 - 30, typ 20mA
    Operating Temperature-20°C - 40°C
    Storage Temperature-40°C - 80°C
    Weight4g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration and technical drawing
  • LFD780-1-3(8x23) - Hauptbild
    LFD780-1-3(8x23) - Rendergrafik
    LFD780-1-3(8x23) - Zeichnung
    LFD780-1-3(8x23) - Zeichnung Front
    LFD780-1-3(8x23) - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: whitewhiteGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
