DD532-25-3(25x60)

Order number: 70103038

Product description:
Dot lasermodule, green, 532nm, 25mW, 3V DC, 25x60mm, class 3B

• Operating Voltage 3 V DC
• Laser Class 3B
• High Power
• small laser head
• fixed focus
DD532-25-3(25x60) - Hauptbild
DD532-25-3(25x60) - Rendergrafik

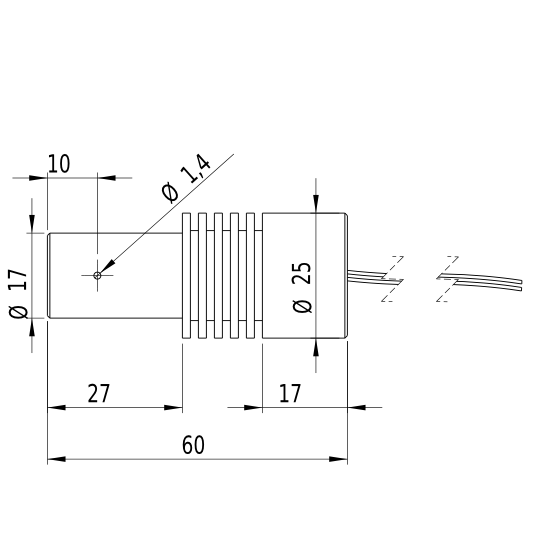

DD532-25-3(25x60) - Zeichnung

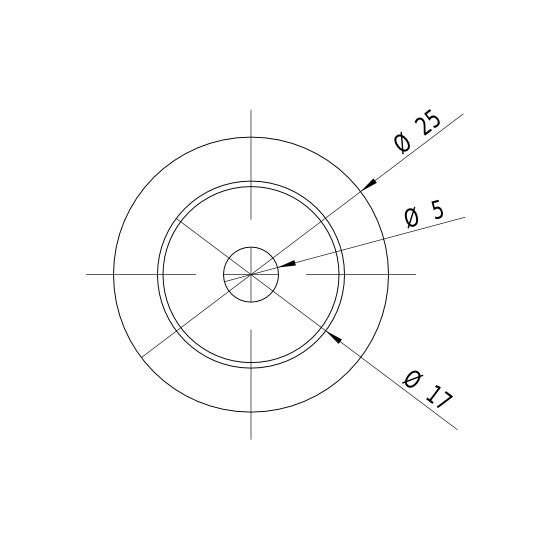

DD532-25-3(25x60) - Zeichnung Front
DD532-25-3(25x60) - Zeichnung isometrisch
Warnlabel 3B
361,26
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength532nm
    (grün)
    Optical Power25mW
    Laser Class3B
    Divergence0.5mrad
    Beam Diameter5mm
    Size of Laserdot<3..5mm@10m
    Operating Distance350m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologyYVO4+KTP
    Size
    Materialaluminium
    Cable length100mm
    Focuscollimated
    Output Aperture5mm
    Potential of HousingVDD(+)
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current175 - 525, typ 350mA
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight57g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    • Illustration and technical drawing
    • DD532-25-3(25x60) - Hauptbild
      DD532-25-3(25x60) - Rendergrafik
      DD532-25-3(25x60) - Zeichnung
      DD532-25-3(25x60) - Zeichnung Front
      DD532-25-3(25x60) - Zeichnung isometrisch
      Warnlabel 3B
      Connector pin assignment
      Ground:Cable color Ground: blueblueGND
      Positive:Cable color Positive: redred3V DC
